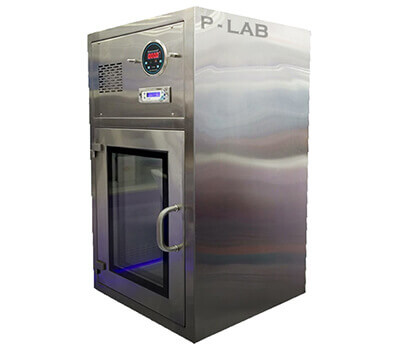

Dynamic Pass Box
The dynamic pass box is a specialized unit used for the transfer of materials between rooms while maintaining a controlled, sterile environment. It is constructed from either powder-coated mild steel or stainless steel and features an interlocking mechanism that prevents both doors from opening simultaneously, reducing the risk of contamination.
Equipped with LED lighting and UV light for sterilization, it also includes a magnehelic gauge to monitor pressure and HEPA filters (0.23 microns) along with pre-filters (10 microns) for superior air filtration. The motor and blower are dynamically balanced for low noise (65 ± 5 dB) and minimal vibration (less than 2.5 µm), ensuring smooth operation.
Moc : M.S Powder Coated / SS
Interlocking : Yes | Light : LED | UV Light : YES
Pressure Meter : Magnehelic Gauge 0-25
Hepa Filter : YES 0.23 MICRON | Pre Filter : YES 10 MICRON
Motor : Dynamically Balanced Motor & Blower
Noise Level : 65 +/- 5 DB | Vibration Level : Less Than 2.5um (0.0001)
Power Supply : 230 V AC , 50 HZ
Door : Center Visible Door
Door Alarm & Indicator : YES
Usage : Material shift from one room to another room.
Specifications
- Made from durable M.S powder-coated or stainless steel for long-lasting performance.
- Features a dynamic air filtration system with HEPA (0.23 micron) and pre-filters (10 micron) for clean air transfer.
- Equipped with a magnehelic pressure gauge for monitoring air pressure within the box.
- Operates quietly with a noise level of 65 ± 5 dB and minimal vibration (<2.5 µm), ensuring a smooth and efficient process.
- Includes LED lighting, UV sterilization, and door alarms with indicators for secure and hygienic material transfer.
